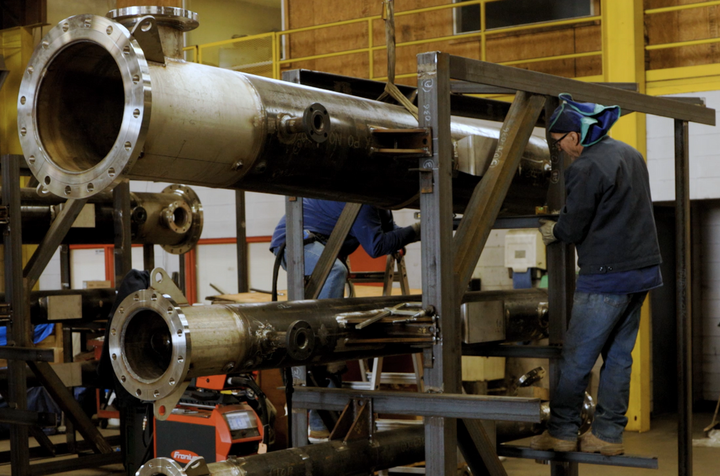

SHELL AND TUBE HEAT EXCHANGERS

All heat exchangers are offered with full mechanical design complete with CAD drawings. LEV offers thermal design capabilities for virtually all applications. It is our preference to participate with the customer in the design process to insure that a practical unit can be manufactured.

MECHANICAL DESIGN

LEV uses the latest design software to ensure that the mechanical design of your pressure vessel or heat exchanger meets the latest ASME requirements for pressure and temperature.

REPAIR SERVICES

LEV repairs ASME Code Vessels under the provisions of the NBIC R Stamp.  This applies to any material listed as being within our welding capabilities.  Most repairs are done in our shop but we also  have the ability to perform field repairs.

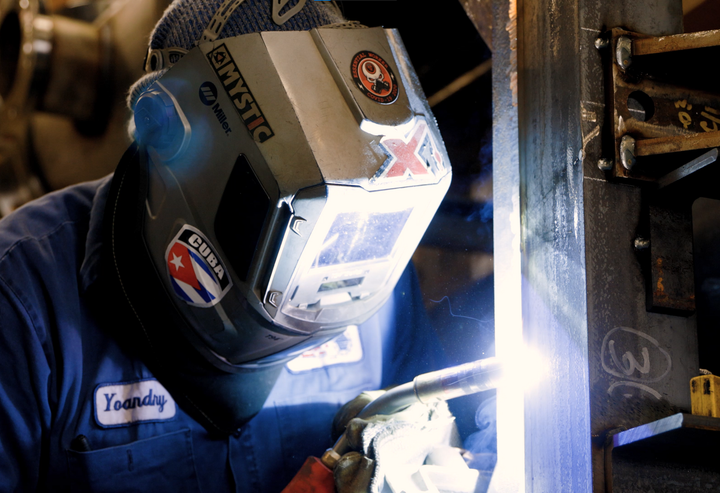

WELDING CAPABLILITIES

Louisville Exchanger and Vessel certifies its welding prodecures and weld operators to Section VIII of the ASME Code.  Whether your process design calls for mild steel or Hastelloy, LEV has the personnel to make it happen. We use a variety of welding processes including GMAW, FCAW, GTAW, Laser, and SAW.

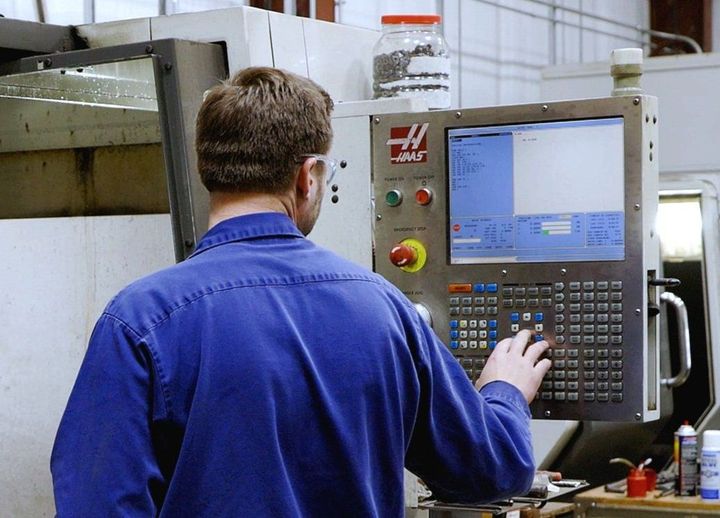

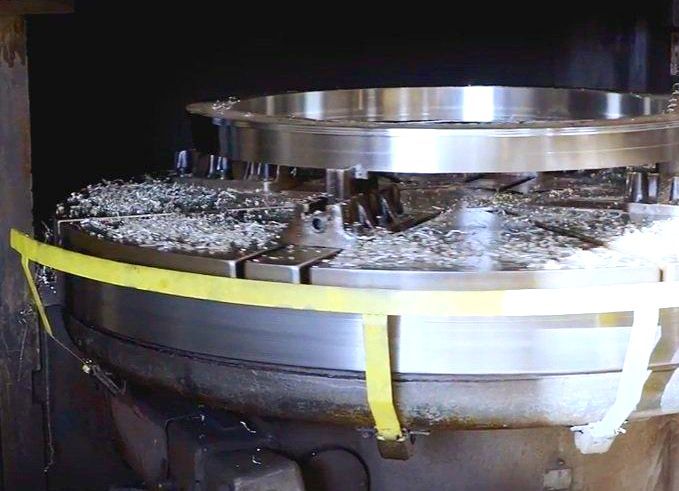

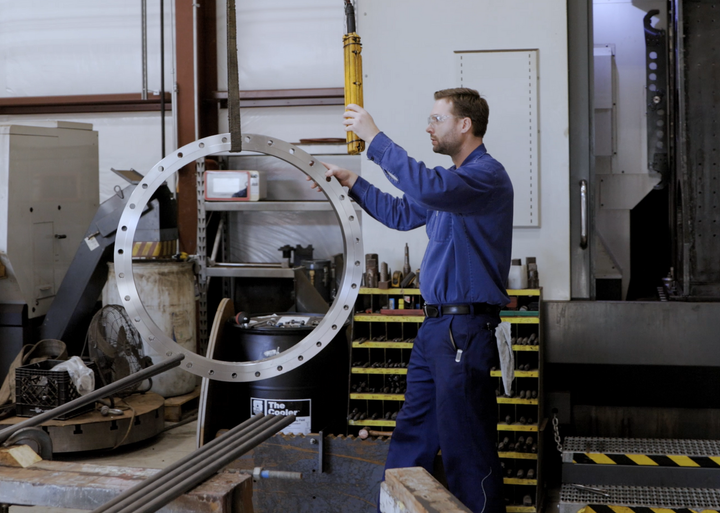

MACHINE PROCESS

Due to our machining abilities and equipment LEV eliminates bottlenecks from the manufacturing process of designing and building heat exchangers and other components.  LEV can also provide custom machine parts, to close tolerances.

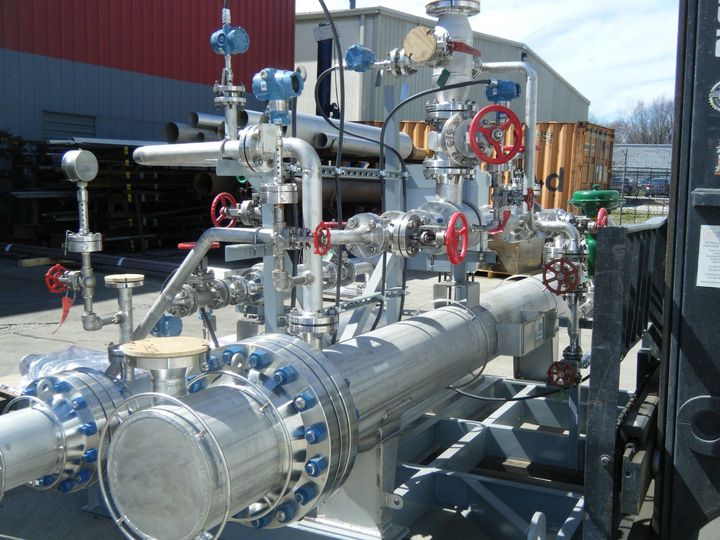

SYSTEM SERVICES

LEV assembles heat exchangers and vessels on packaged skids.  In addition we can mount other customer supplied equipment such as pumps, control valves and similar components and completely pipe the assembly.

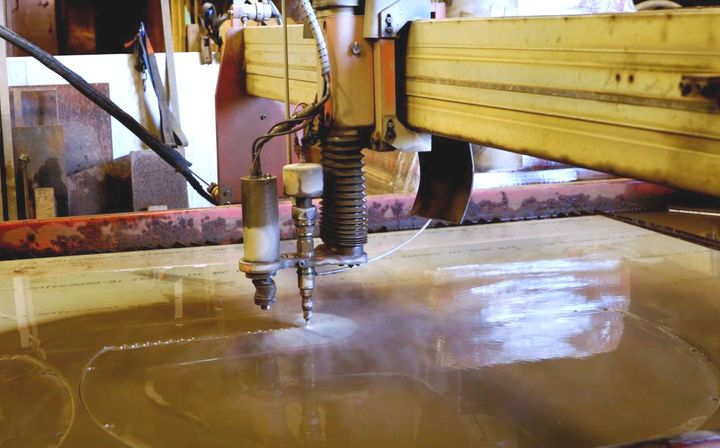

WATER JET

LEV has an in house water jet allowing us to design and cut any material required for any project.

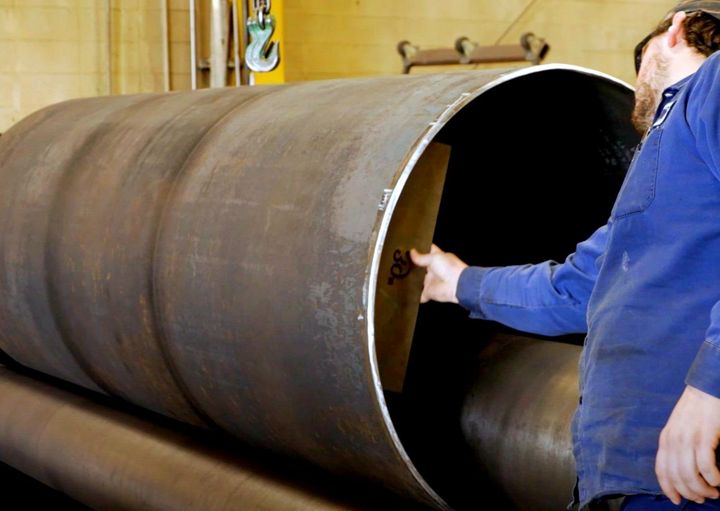

PLATE ROLLING

With our plate roller LEV can roll plate up to and including 10' wide x 1-3/8" thick.

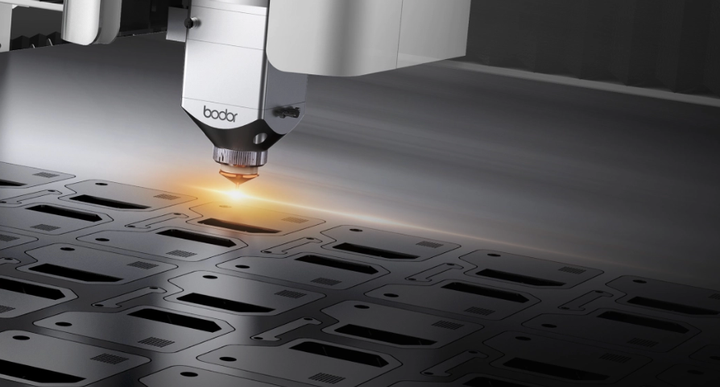

LASER

The BodorThinker 3.0 LS6000 Laser Cutting System is a fiber laser cutting machine designed for high-precision and efficient processing of various metal sheets, tubes, and pipes.
